| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | IEC, Rosh，CCC |
| Model Number: | DWZA-YJY/N2X2Y |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum, Coil In Foil / Drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
| Model Name: | DWZA | Armour: | Galvanized Steel Tape |
|---|---|---|---|
| Popular Sizes: | 2~5core X1.5~630mm² | Insulator: | XLPE |
| Conductor Type: | Bare Copper Class 2 | Sheath: | PVC, ZR-PVC, PE, LSOH |
| Application: | Underground | ||
| High Light: | LSZH Sheathed Halogen Free Cable,LSOH Halogen Free Cable,ZR PVC Low Smoke Cable |
||
►About Dongjiaxin Your Reliable Partner for High-Quality Cables
For over 32 years, Shenzhen Dongjiaxin has been a trusted name in the cable industry, providing original and standard cables to meet the diverse needs of our customers. We take pride in our annual sales of 1 billion USD and our commitment to producing the finest cables using the latest technology and quality management systems.
Our cables are designed to meet the highest international quality standards and are subjected to the most rigorous tests in our CNAS accredited laboratories. As a result, our products stand out in terms of quality and performance, and are priced more competitively than other leading brands such as Prysmian and Nexans. We work with 10+ Fortune 500 companies, listed companies, and export our cables to different countries, proving our commitment to providing excellent service and products to our customers.
At Dongjiaxin, we offer a wide range of cables, including electrical wire, power cable, control cable, solar cable, industrial electrical cable, Ethernet cable, rubber cable, and more. We invest in R&D to continuously improve our cables' performance and to offer better alternatives to imported brands. As a result, we have become the preferred brand for large-scale government projects, engineering projects, construction, transport, and industrial customers.
Our commitment to quality and excellence is evident in our numerous qualifications, including ISO9001, ISO14001, ISO45001, TS16949, ISO17025, iLac, CNAS, TUV, VDE, ETL, IEC, UL, CE, RoHS, Reach, CB, CCC, and CQC. These certifications show our commitment to ensuring that our cables meet the highest industry standards.
Choose Shenzhen Dongjiaxin Cable for high-quality cables that exceed perfection.
►Product Features
Reliable: Our N2X2Y LSZH sheathed 10mm2 Class 2 conductor low smoke halogen-free cable is designed to provide maximum reliability for your electrical systems.
Durable: With a durable LSZH sheath, our cable is designed for long-term use and provides excellent resistance to wear and tear.
Fireproof: Our low smoke halogen-free cable is fireproof, ensuring maximum safety in the event of a fire.
Eco-friendly: Our cable is environmentally friendly with a halogen-free design that reduces emissions.
Cost-effective: Our cable is cost-effective, making it an excellent choice for budget-conscious businesses.

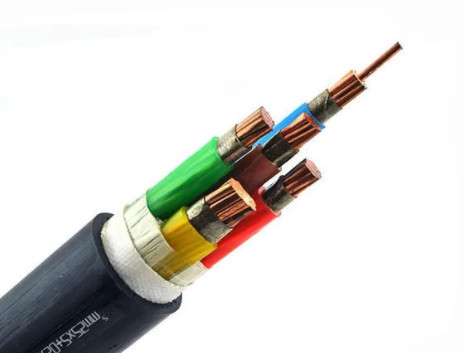

copper conductor pvc insulated steel tape armoured multi-core power cablesConstruction: Stranded (RM) bare copper as per IEC60228 Extruded PVC Inner Covering Galvanized Steel Tape Armoured
Application:
Technical data:
IEC 60502, 60332, 60331 DIN VDE 0276-620
Model Explanation:
Product details
XLPE Insulation Electric Wire Cable
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
▼ Delivery Port :
|
|
|
| Port of Shenzhen | Port of Hongkong |
Port of Guangzhou
|
▼ Technical parameters:
1. Single Core
| Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1×1.5 | 1 | 0.7 | 1.4 | 6.0 | 12.1 |
| 1×2.5 | 1 | 0.7 | 1.4 | 6.4 | 7.41 |
| 1×4 | 1 | 0.7 | 1.4 | 6.9 | 4.61 |
| 1×6 | 1 | 0.7 | 1.4 | 7.3 | 3.08 |
| 1×10 | 7 | 0.7 | 1.4 | 8.4 | 1.83 |
| 1×16 | 7 | 0.7 | 1.4 | 9.4 | 1.15 |
| 1×25 | 7 | 0.9 | 1.4 | 11.0 | 0.727 |
| 1×35 | 7 | 0.9 | 1.4 | 12.0 | 0.524 |
| 1×50 | 10 | 1.0 | 1.4 | 13.3 | 0.387 |
| 1×70 | 14 | 1.1 | 1.4 | 15.1 | 0.268 |
| 1×95 | 19 | 1.1 | 1.5 | 17.3 | 0.193 |
| 1×120 | 24 | 1.2 | 1.5 | 19.0 | 0.153 |
| 1×150 | 30 | 1.4 | 1.6 | 20.9 | 0.124 |
| 1×185 | 37 | 1.6 | 1.6 | 23.0 | 0.0991 |
| 1×240 | 48 | 1.7 | 1.7 | 25.7 | 0.0754 |
| 1×300 | 61 | 1.8 | 1.8 | 28.3 | 0.0601 |
| 1×400 | 61 | 2.0 | 1.9 | 31.6 | 0.0470 |
| 1×500 | 61 | 2.2 | 2.0 | 35.1 | 0.0366 |
| 1×630 | 61 | 2.4 | 2.2 | 42.1 | 0.0283 |
2. 2 Core&3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×1.5 | 1 | 0.7 | 1.8 | 10.6 | 12.1 |
| 2×2.5 | 1 | 0.7 | 1.8 | 11.4 | 7.41 |
| 2×4 | 1 | 0.7 | 1.8 | 12.4 | 4.61 |
| 2×6 | 1 | 0.7 | 1.8 | 13.2 | 3.08 |
| 2×10 | 7 | 0.7 | 1.8 | 15.4 | 1.83 |
| 2×16 | 7 | 0.7 | 1.8 | 17.4 | 1.15 |
| 2×25 | 7 | 0.9 | 1.8 | 20.6 | 0.727 |
| 2×35 | 7 | 0.9 | 1.8 | 22.6 | 0.524 |
| 2×50 | 10 | 1.0 | 1.8 | 26.2 | 0.387 |
| 2×70 | 14 | 1.1 | 1.8 | 29.8 | 0.268 |
| 2×95 | 19 | 1.1 | 1.9 | 34.0 | 0.193 |
| 2×120 | 24 | 1.2 | 2.0 | 37.4 | 0.153 |
| 2×150 | 30 | 1.4 | 2.2 | 41.2 | 0.124 |
| 2×185 | 37 | 1.6 | 2.3 | 45.6 | 0.0991 |
| 2×240 | 48 | 1.7 | 2.5 | 51.0 | 0.0754 |
| 2×300 | 61 | 1.8 | 2.6 | 56.0 | 0.0601 |
| 2×400 | 61 | 2.0 | 2.9 | 62.6 | 0.0470 |
| 2×500 | 61 | 2.2 | 3.1 | 70.0 | 0.0366 |
| 2×630 | 61 | 2.4 | 3.3 | 83.6 | 0.0283 |
| 3×1.5 | 1 | 0.7 | 1.8 | 11.2 | 12.1 |
| 3×2.5 | 1 | 0.7 | 1.8 | 12.1 | 7.41 |
| 3×4 | 1 | 0.7 | 1.8 | 13.2 | 4.61 |
| 3×6 | 1 | 0.7 | 1.8 | 14.0 | 3.08 |
| 3×10 | 7 | 0.7 | 1.8 | 16.4 | 1.83 |
| 3×16 | 7 | 0.7 | 1.8 | 18.6 | 1.15 |
| 3×25 | 7 | 0.9 | 1.8 | 22.0 | 0.727 |
| 3×35 | 7 | 0.9 | 1.8 | 24.2 | 0.524 |
| 3×50 | 10 | 1.0 | 1.8 | 28.0 | 0.387 |
| 3×70 | 14 | 1.1 | 1.9 | 32.1 | 0.268 |
| 3×95 | 19 | 1.1 | 2.0 | 36.4 | 0.193 |
| 3×120 | 24 | 1.2 | 2.1 | 40.3 | 0.153 |
| 3×150 | 30 | 1.4 | 2.3 | 44.3 | 0.124 |
| 3×185 | 37 | 1.6 | 2.4 | 49.1 | 0.0991 |
| 3×240 | 48 | 1.7 | 2.6 | 54.9 | 0.0754 |
| 3×300 | 61 | 1.8 | 2.7 | 60.1 | 0.0601 |
| 3×400 | 61 | 2.0 | 3.0 | 67.4 | 0.0470 |
| 3×500 | 61 | 2.2 | 3.2 | 75.3 | 0.0366 |
| 3×630 | 61 | 2.4 | 3.5 | 90.0 | 0.0283 |
3. 4 Core&5 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 4×1.5 | 1 | 0.7 | 1.8 | 12.2 | 12.1 |
| 4×2.5 | 1 | 0.7 | 1.8 | 13.1 | 7.41 |
| 4×4 | 1 | 0.7 | 1.8 | 14.3 | 4.61 |
| 4×6 | 1 | 0.7 | 1.8 | 15.3 | 3.08 |
| 4×10 | 7 | 0.7 | 1.8 | 18.0 | 1.83 |
| 4×16 | 7 | 0.7 | 1.8 | 20.4 | 1.15 |
| 4×25 | 7 | 0.9 | 1.8 | 24.3 | 0.727 |
| 4×35 | 7 | 0.9 | 1.8 | 26.7 | 0.524 |
| 4×50 | 10 | 1.0 | 1.8 | 30.8 | 0.387 |
| 4×70 | 14 | 1.1 | 2.0 | 35.4 | 0.268 |
| 4×95 | 19 | 1.1 | 2.1 | 40.4 | 0.193 |
| 4×120 | 24 | 1.2 | 2.3 | 44.9 | 0.153 |
| 4×150 | 30 | 1.4 | 2.4 | 49.3 | 0.124 |
| 4×185 | 37 | 1.6 | 2.6 | 54.7 | 0.0991 |
| 4×240 | 48 | 1.7 | 2.8 | 61.0 | 0.0754 |
| 4×300 | 61 | 1.8 | 3.0 | 67.2 | 0.0601 |
| 4×400 | 61 | 2.0 | 3.3 | 75.3 | 0.0470 |
| 4×500 | 61 | 2.2 | 3.5 | 84.0 | 0.0366 |
| 4×630 | 61 | 2.4 | 3.8 | 100.5 | 0.0283 |
| 5×1.5 | 1 | 0.7 | 1.8 | 13.2 | 12.1 |
| 5×2.5 | 1 | 0.7 | 1.8 | 14.2 | 7.41 |
| 5×4 | 1 | 0.7 | 1.8 | 15.6 | 4.61 |
| 5×6 | 1 | 0.7 | 1.8 | 16.7 | 3.08 |
| 5×10 | 7 | 0.7 | 1.8 | 19.6 | 1.83 |
| 5×16 | 7 | 0.7 | 1.8 | 22.3 | 1.15 |
| 5×25 | 7 | 0.9 | 1.8 | 26.7 | 0.727 |
| 5×35 | 7 | 0.9 | 1.8 | 29.4 | 0.524 |
| 5×50 | 10 | 1.0 | 1.9 | 34.1 | 0.387 |
| 5×70 | 14 | 1.1 | 2.1 | 39.1 | 0.268 |
| 5×95 | 19 | 1.1 | 2.2 | 44.7 | 0.193 |
| 5×120 | 24 | 1.2 | 2.4 | 49.7 | 0.153 |
| 5×150 | 30 | 1.4 | 2.6 | 54.7 | 0.124 |
| 5×185 | 37 | 1.6 | 2.8 | 60.6 | 0.0991 |
| 5×240 | 48 | 1.7 | 3.0 | 67.7 | 0.0754 |
| 5×300 | 61 | 1.8 | 3.2 | 74.6 | 0.0601 |
| 5×400 | 61 | 2.0 | 3.5 | 83.4 | 0.0470 |
| 5×500 | 61 | 2.2 | 3.8 | 93.4 | 0.0366 |
| 5×630 | 61 | 2.4 | 4.1 | 111.7 | 0.0283 |
▼Ordering Advice:
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
If this all seems a little too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
